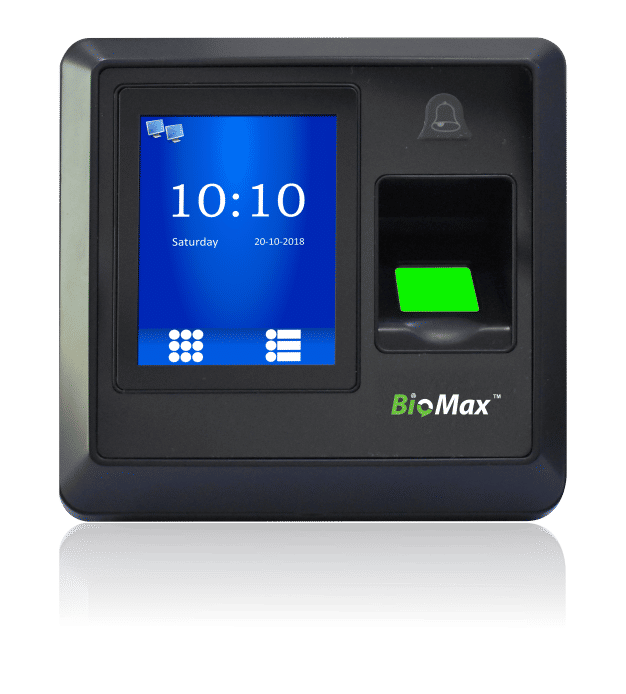

N-BM300 W Fingerprint Time Attendance device with Elegant Vertical look fits into smaller spaces

N-BM300 W Fingerprint Time Attendance Device

For those who believe size matter, the N-BM300 W Time Attendance device is for your requirements.

Due to rigid making and style N-BM300 W device is so popular, whether you want to install it a your office, in a forklift or in bus this device fits in any place.

Every feature is stuffed inside this little marvel that fits in most of the necessities of the user. Touchscreen with 2.8-inch LCD makes this model elegant, as well as a charcoal black body, adds a style to your premises.

The user gets a bell function key on the device for an unauthorized person to inform the security personnel or receptionist.

It holds an ultimate CPU for errorless and lag-free performance. Linux OS has been included in it for High-Speed performance. Users will find this device more attractive due to its size and quick response technology.

Small in size but backed up by a powerful sensor. We integrated a sensor that verifies all types of fingers with the same accuracy as it does to normal ones like mehndi, color, ink even rough and dry fingers too.

N-BM300 W hands out both Wi-Fi (wireless) & TCP/IP protocol (LAN) and USB as a communication option. This model doesn’t weigh down in a matter of connectivity as it has a strong Wi-Fi receiver to connect to your wireless routerConnect it using LAN or USB both function is available if the data needs to be taken where the internet connectivity is not available.

Centralize your data to your head office using a combination of this device and PUSH data technology. Keep your premises secure with its access control feature. This model supports Wiegand Reader, Exit switch, No Touch sensor, Wireless Remote, etc. making it supple for the users to use the exit option as their necessity.

N-BM300 W Specification

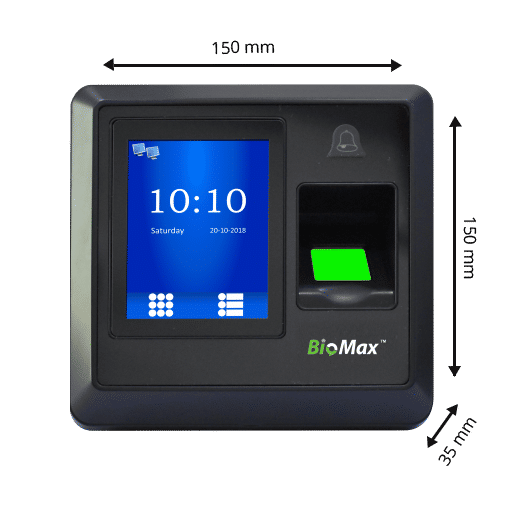

N-BM300 W Dimension

Storage Capacity

Finger Capacity: 3000
Card Capacity: 3000
Log Capacity: 150000
Password Capacity: 3000


WiFi, TCP/IP, USB (host and slave)
Push Data: Yes (Optional)

Audio / Visual

LCD: 2.8" TFT color screen
Voice instruction: 16-bit Hi-Fi voice & sound indication
Language: English


FAR: 0.00001%
FRR: 0.001%
Sensor type: 500 DPI
Identification Mode: Fingerprint, Card, PIN

Power & Environment

Operating Temperature: 0°c ~ 50°c
Power: 12V DC / 2A
Dimension (L*H*W): 150 x 150 x 35 mm


Desktop, Web , Cloud
SSR : Yes (Optional)

Access Control

Wiegand input/output: Yes
Relay: 2 Relay
Standard Access Control Function: 255 Time Zone, Multi-identification Duress mode, Anti-passback
